SMD Ceramic Capacitors vs Film Capacitors Cheat Sheet


As technologies continues to advance, MLCC's capacitance ranges continue to increase across all dielectrics. The NP0/C0G dielectric's capacitance range is now increasing due to technological improvements. These improvements allows engineers to use NP0/C0G MLCC's in smaller and tighter areas on the circuit board where film capacitors are required.

This one page resource provides you insight into the advantages and disadvantages of using NP0/C0G MLCC's and Film Capacitors. This document is meant to be a quick resource for engineers when deciding whether to use the different capacitor types.

If you have any questions about this document or if you need guidance if a NP0/C0G MLCC could be used instead of a film capacitor, please contact us here.


Share this resource

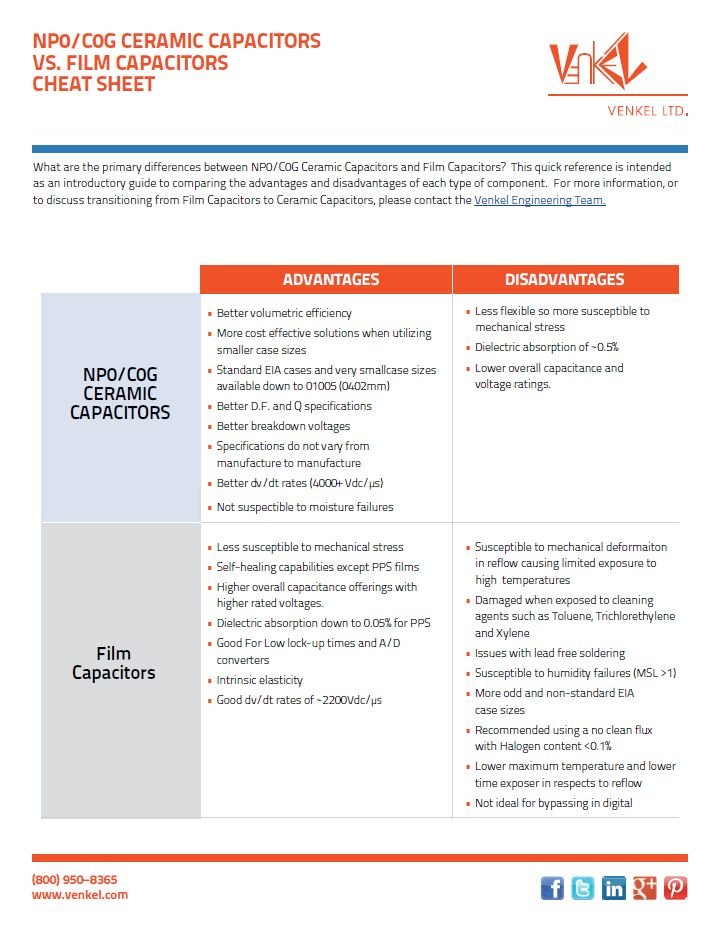

SMD Ceramic Capacitors vs
Film Capacitors Cheat Sheet
MLCC v.s Film
