Engineering Kits

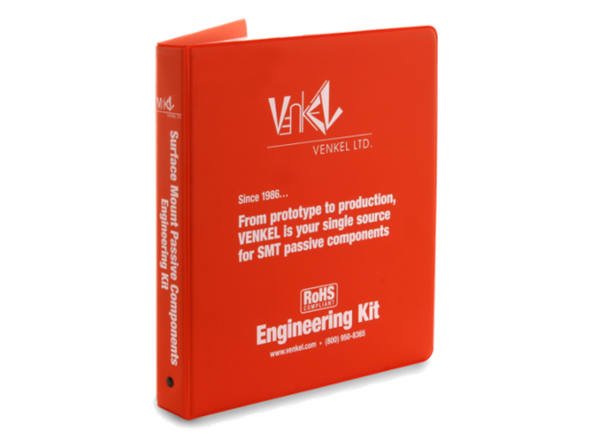

Get a binder filled with electronic passive components tailored to your needs.
Boost efficiency and unleash your potential.
- Great for prototyping, debugging, and redesign projects
- Grab-and-go easy to use binder
- FREE refills for life
Take a look at all of our kit offerings below. Email your account manager or contact us now.
| PART NUMBER | QTY PER | SIZE | VALUE RANGE | RATE VOLTAGE | TOLERANCES | # OF VALUES | |
|---|---|---|---|---|---|---|---|
| AGC-KIT-25 | 25 | 0402 to 2225 | 0.1pF to 10uF | 50V to 2000V | ±0.1pF to ±20% | 49 |
| PART NUMBER | QTY PER | SIZE | POWER RATING | PPM* | RESISTANCE RANGE | TOLERANCES | # OF VALUES | |
|---|---|---|---|---|---|---|---|---|
| AGCR0402-16W-KIT-F-25 | 25 | 0402 | 0.063W | ±100ppm to ±200ppm | Jumper to 10MΩ | ±1% | 257 | |
| AGCR0603-10W-KIT-F-25 | 25 | 0603 | 0.10W | 176 | ||||
| AGCR0805-8W-KIT-F-25 | 25 | 0805 | 0.125W | 128 |
| PART NUMBER | QTY PER | SIZE | POWER RATING | PPM* | RESISTANCE RANGE | TOLERANCES | # OF VALUES | |
|---|---|---|---|---|---|---|---|---|
| AGTF-KIT-25 | 25 | 0402 to 1206 | 0.063W to 0.25W | ±25ppm | 3.60Ω to 750KΩ | ±0.1% | 61 |
| PART NUMBER | QTY PER | SIZE | POWER RATING | RESISTANCE | TOLERANCE | # OF VALUES | |
|---|---|---|---|---|---|---|---|
| CR0201-20W-KIT-F-25 | 25 | 0201 | 1/20W | Jumper to 1.5MΩ | ±1% | 221 | |
| CR0201-20W-KIT-J-25 | 25 | 0201 | 1/20W | Jumper to 1.5MΩ | ±5% | 69 | |
| CR0402-16W-KIT-F-25 | 25 | 0402 | 1/16W | Jumper to 1.5MΩ | ±1% | 257 | |
| CR0402-16W-KIT-J-25 | 25 | 0402 | 1/16W | Jumper to 10MΩ | ±5% | 99 | |
| CR0603-10W-KIT-F-25 | 25 | 0603 | 1/16W to 1/10W | Jumper to 10MΩ | ±1% | 176 | |
| CR0603-10W-KIT-J-25 | 25 | 0603 | 1/16W to 1/10W | Jumper to 10MΩ | ±5% | 99 | |
| CR0805-8W-KIT-F-25 | 25 | 0805 | 1/10W to 1/8W | Jumper to 10MΩ | ±1% | 128 | |
| CR0805-8W-KIT-J-25 | 25 | 0805 | 1/10W to 1/8W | Jumper to 10MΩ | ±5% | 99 | |
| CR1206-4W-KIT-F-25 | 25 | 1206 | 1/8W to 1/4W | Jumper to 10MΩ | ±1% | 71 | |
| CR1206-4W-KIT-J-25 | 25 | 1206 | 1/8W to 1/4W | Jumper to 10MΩ | ±5% | 60 |
| PART NUMBER | QTY PER | SIZE | POWER RATING | RESISTANCE | TOLERANCE | # OF VALUES | |
|---|---|---|---|---|---|---|---|
| HPCR0402-R-KIT-25 | 25 | 0402 | 1/8W | Jumper to 1MΩ | ±1% | 177 | |
| HPCR0603-T-KIT-25 | 25 | 0603 | 1/4W | Jumper to 1MΩ | ±1% | 177 |
| PART NUMBER | QTY PER | SIZE | RESISTANCE | TOLERANCE | # OF VALUES | |
|---|---|---|---|---|---|---|
| LCR-KIT-10 | 10 | 0402 to 2512 | 20mR - 750mR | ±1% | 42 |
| PART NUMBER | QTY PER | SIZE | POWER RATING | RESISTANCE | TOLERANCE | # OF VALUES | |
|---|---|---|---|---|---|---|---|
| CRS-KIT-10 | 10 | 0402 to 2010 | 1/16W to 3/4W | 1RΩ to 10MΩ | ±1%, ±5% | 157 |
| PART NUMBER | QTY PER | SIZE | POWER RATING | PPM | RESISTANCE | TOLERANCE | # OF VALUES | |
|---|---|---|---|---|---|---|---|---|
| TFCR0201-20W-KIT-ED-25 | 25 | 0201 | 1/20W | ±25 | 27RΩ to 4.99KΩ | ±0.5% | 43 | |
| TFCR0402-16W-KIT-EB-25 | 25 | 0201 | 1/20W | ±25 | 10RΩ to 200KΩ | ±0.1% | 150 | |
| TFCR0402-16W-KIT-ED-25 | 25 | 0402 | 1/16W | ±25 | 10RΩ to 249KΩ | ±0.5% | 151 | |
| TFCR0603-10W-KIT-EB-25 | 25 | 0402 | 1/16W | ±25 | 10RΩ to 1MΩ | ±0.1% | 174 | |
| TFCR0603-16W-KIT-ED-25 | 25 | 0603 | 1/16W to 1/10W | ±25 | 1.1RΩ to 1M Ω | ±0.5% | 154 | |
| TFCR0805-8W-KIT-EB-25 | 25 | 0603 | 1/16W to 1/10W | ±25 | 10RΩ to 1MΩ | ±0.1% | 174 | |
| TFCR1206-2512-KIT-10 | 10 | 1206 to 2512 | 1/8W to 1/2W | 5, 10, 25, 50 | 1.5RΩ to 3MΩ | ±0.1%, ±0.25%, ±0.5% | 179 |
| PART NUMBER | QTY PER | SIZE | POWER RATING | RESISTANCE | TOLERANCE | # OF VALUES | |
|---|---|---|---|---|---|---|---|
| CRG0603-KIT-25 | 25 | 0603 | 1/10W | 0RΩ -10MΩ | ±1%,±5% | 178 | |
| CRG0805-KIT-25 | 25 | 0805 | 1/20W | 0RΩ - 10MΩ | ±1%,±5% | 128 |
| PART NUMBER | QTY PER | SIZE | VALUE RANGE | TOLERANCE | # OF VALUES | |
|---|---|---|---|---|---|---|
| MLF1608-KIT-10 | 10 | 1608 | 68 nH to 10uH | ±10% , ±20% | 20 | |
| MLF2012-KIT-10 | 10 | 2012 | 0.1uH to 22uH | ±10% , ±20% | 21 |
| PART NUMBER | QTY PER | SIZE | VALUE RANGE | TOLERANCE | # OF VALUES | |
|---|---|---|---|---|---|---|
| TFI0201-Q-KIT-10 (High-Q) | 10 | 0201 | 0.07nH to 9.1nH | ±0.1nH | 45 | |
| TFI0402-Q-KIT-10 (High-Q) | 10 | 0402 | 1nH to 9.1nH | ±0.1nH | 24 | |
| TFI0201-S-KIT-10 | 10 | 0201 | 0.7nH to 5.6nH | ±0.3nH | 39 |
| PART NUMBER | QTY PER | SIZE | VALUE RANGE | TOLERANCE | # OF VALUES | |
|---|---|---|---|---|---|---|
| LMCI0201-KIT-10 | 10 | 0201 | 1.0nH to 33nH | ±0.3nH , ±5nH | 19 | |
| LMCI1005-KIT-10 | 10 | 1005 (0402) | 1.2nH to 100nH | ±0.3nH , ±5nH | 18 | |
| LMCI1608-KIT-10 | 10 | 1608 (0603) | 1.5nH to 100nH | ±0.3nH , ±5nH | 21 |
| PART NUMBER | QTY PER | SIZE | VALUE RANGE | TOLERANCE | # OF VALUES | |
|---|---|---|---|---|---|---|
| WRFI0402-KIT-10 | 10 | 0402 | 1.6nH to 120nH | ±5% , ±10% | 46 | |
| WRFI0603-KIT-10 | 10 | 0603 | 1.0nH to 470nH | ±10% | 61 | |
| WRFI0805-KIT-10 | 10 | 0805 | 2.7nH to 4.7uH | ±10% | 61 |
| PART NUMBER | QTY PER | SIZE | VALUE RANGE | RATE VOLTAGE | TOLERANCE | # OF VALUES | |
|---|---|---|---|---|---|---|---|
| C0201-CAPKIT-25 | 25 | 0201 | 0.5pF to 1.0uF | 6.3V to 50V | ±0.1pF, ±5%, ±10%, ±20% | 56 | |
| C0402-CAPKIT-25 | 25 | 0402 | 0.5pF to 10uF | 6.3V to 50V | ±0.1pF, ±5%, ±10%, ±20% | 70 | |
| C0603-CAPKIT-25 | 25 | 0603 | 0.5pF to 22uF | 6.3V to 50V | ±0.25pF, ±5%, ±10%, ±20% | 79 | |
| C0805-CAPKIT-25 | 25 | 0805 | 0.5pF to 47uF | 6.3V to 50V | ±0.25pF, ±5%, ±10%, ±20% | 66 | |
| C1206-CAPKIT-25 | 25 | 1206 | 1.0pF to 10uF | 6.3V to 50V | ±0.25pF, ±5%, ±10%, ±20% | 58 |
| PART NUMBER | QTY PER | SIZE | VALUE RANGE | RATE VOLTAGE | TOLERANCE | # OF VALUES | |
|---|---|---|---|---|---|---|---|
| C0201-HQNCAPKIT-10 | 10 | 0201 | 0.1pF to 33pF | 25V | ±0.10pF, ±0.25pF, ±5% | 33 | |
| C0402-HQNCAPKIT-10 | 10 | 0402 | 0.1pF to 22pF | 50V | ±0.10pF, ±0.25pF, ±5% | 34 | |
| C0603-HQNCAPKIT-10 | 10 | 0603 | 0.3pF to 47pF | 250V | ±0.10pF, ±0.25pF, ±5% | 35 | |
| C0805-HQNCAPKIT-10 | 10 | 0805 | 0.9pF to 100pF | 250V | ±0.10pF, ±0.25pF, ±5% | 36 |
| PART NUMBER | QTY PER | SIZE | VALUE RANGE | RATE VOLTAGE | TOLERANCE | # OF VALUES | |
|---|---|---|---|---|---|---|---|
| HI-CAPKIT-25 | 25 | 0201 to 1210 | 1.0 uF to 100uF | 6.3V to 25V | ±10%, ±20% | 32 |
| PART NUMBER | QTY PER | SIZE | VALUE RANGE | RATE VOLTAGE | TOLERANCE | # OF VALUES | |
|---|---|---|---|---|---|---|---|
| HI-CAPC0GKIT-25 | 25 | 0402 to 1812 | 330pF to 1500pF | 50V to 100V | ±5% | 26 |
| PART NUMBER | QTY PER | SIZE | VALUE RANGE | RATE VOLTAGE | TOLERANCE | # OF VALUES | |
|---|---|---|---|---|---|---|---|
| HVC-CAPKIT-25 | 25 | 0805 | 680pF to 0.022uF | 200V - 1000V | ±5%, ±10% | 13 | |
| 1206 | 100pF to 0.22uF | 250V - 2000V | ±5%, ±10% | 18 | |||
| 1210 | 1000pF to 0.47uF | 200V - 2000V | ±10% | 6 | |||
| 1808 | 1000pF to 0.01uF | 2000V - 3000V | ±10% | 3 | |||
| 1812 | 1000pF to 0.47uF | 250V - 3000V | ±10% | 6 | |||
| FTC1206 | 0.01uF to 0.047uF | 630V - 1000V | ±10% | 4 | |||
| FTC1210 | 0.01uF to 0.1uF | 500V - 2000V | ±10% | 4 | |||
| FTC1812 | 0.1uF | 630V | ±10%% | 1 |
| PART NUMBER | QTY PER | SIZE | VALUE RANGE | SAFETY RATING | TOLERANCE | # OF VALUES | |
|---|---|---|---|---|---|---|---|
| SAFC-CAPKIT-10 | 10 | 1808 to 2220 | 18pF to 4700pF | X1/Y2 , X2 | ±5%, ±10% | 18 |
| PART NUMBER | QTY PER | SIZE | IMPEDANCE VALUE | CURRRENT RATING | DC RESISTANCE | # OF VALUES | |
|---|---|---|---|---|---|---|---|
| FBM-KIT-10 | 10 | 0402 | 10RΩ to 1.8KΩ | 100mA to 500mA | 0.05Ω to 1.50Ω | 19 | |
| 0603 | 10RΩ to 2.7KΩ | 50mA to 400mA | 0.10Ω to 1.00Ω | 26 | |||
| 0805 | 26RΩ to 2.5KΩ | 200mA to 500mA | 0.15Ω to 0.60Ω | 18 | |||
| 1206 | 19RΩ to 1.5KΩ | 350mA to 800mA | 0.1Ω to 0.4Ω | 18 |
| PART NUMBER | QTY PER | SIZE | IMPEDANCE VALUE | CURRRENT RATING | DC RESISTANCE | # OF VALUES | |
|---|---|---|---|---|---|---|---|
| FBC-KIT-10 | 10 | 0402 | 10RΩ to 220RΩ | 1400mA to 2000mA | 0.092Ω to 0.100Ω | 5 | |
| 0603 | 10Ω - 1.5KΩ | 800mA to 4000mA | 0.02Ω to 0.25Ω | 26 | |||
| 0805 | 11Ω - 1.5KΩ | 1000mA to 5000mA | 0.01Ω to 0.3Ω | 29 | |||
| 1206 | 31RΩ to 120RΩ | 4000mA to 6000mA | 0.006Ω to 0.020Ω | 5 | |||
| 1808 | 50RΩ to 1KΩ | 2000mA | 0.10Ω | 9 | |||
| 1812 | 10RΩ - 150Ω | 4000mA - 6000mA | 0.03Ω | 2 |
| PART NUMBER | QTY PER COLOR | SIZE | COLORS | # OF VALUES | |
|---|---|---|---|---|---|
| LED-KIT-5 | 5 | 0402 to 1206 | Green, Red, Blue, Yellow-White, RGB | 18 |
| PART NUMBER | QTY PER COLOR | SIZE | TYPES | # OF VALUES | |
|---|---|---|---|---|---|
| DISCRETE-KIT-10 | 5 | Various | DIodes, MosFETs, Transistors | 45 |
| PART NUMBER | QTY PER COLOR | SIZE | TYPES | # OF VALUES | |
|---|---|---|---|---|---|
| RFTUNING-KIT-25 | 25 | 0201 to 1206 | Antenna, Capacitors, Inductors and Resistors | 18 |
QUESTIONS? CONTACT OUR SALES TEAM
